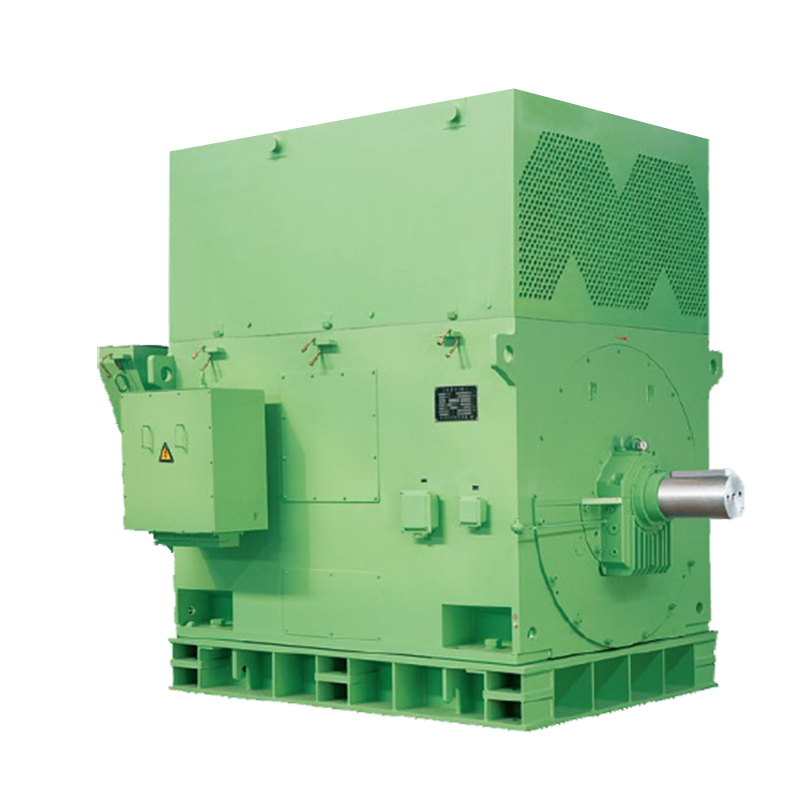

This series of motors are developed by our company in accordance with the IEC standard and the machinery industry standard JB/T 7218-2007, specially used for coal grinding machine of power plant.
Scope of Application
This series of motors are specially used as prime movers for various fans of large thermal power equipment, such as powder exhaust fans, induced draft fans, primary fans, and blowers.
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage 380V, Rated frequency 50HZ;
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
7,The working voltage change range is not more than ±5% of the rated voltage.
8, No. Of poles: 4,6,8
If there are special conditions and requirements, the order is also acceptable, but an additional technical requirements should be concluded,e.g non-standard power or the power not listed in sample, voltage, frequency, installation dimension, over-all dimension, high altitude, special ambient temperature, ambient environment and corrosive gas, large rotational inertia, strong over-load capacity.etc.
型号 | (kW) |
(A) | (r/min) |
(%) | cosΦ |
Tm Tn | Tm Tn | Tm Tn | (kg) | |||
Jm (kg.m2) | J (kg.m2) | IP54 | ||||||||||
YTM400-8 | 160 | 22 | 742 | 91.0 | 0.78 | 2.0 | 1.5 | 7.0 | 11 | 310 | 2700 | |
YTM400-8 | 185 | 25 | 742 | 91.1 | 0.78 | 2.0 | 1.5 | 7.0 | 12 | 350 | 2800 | |
YTM400-8 | 200 | 27 | 742 | 91.2 | 0.78 | 2.0 | 1.5 | 7.0 | 15 | 390 | 2900 | |
YTM400-8 | 220 | 30 | 742 | 91.3 | 0.78 | 2.0 | 1.5 | 7.0 | 17 | 430 | 3000 | |
YTM450-8 | 250 | 34 | 742 | 92.0 | 0.78 | 2.0 | 1.5 | 7.0 | 19 | 470 | 3600 | |
YTM450-8 | 280 | 38 | 742 | 92.0 | 0.78 | 2.0 | 1.5 | 7.0 | 20 | 530 | 3700 | |
YTM450-8 | 315 | 42 | 742 | 92.2 | 0.78 | 2.0 | 1.5 | 7.0 | 23 | 590 | 3800 | |
YTM450-8 | 355 | 47 | 742 | 92.3 | 0.78 | 2.0 | 1.5 | 7.0 | 25 | 650 | 4000 | |
YTM500-8 | 400 | 53 | 742 | 93.4 | 0.78 | 2.0 | 1.5 | 7.0 | 33 | 730 | 4400 | |
YTM500-8 | 450 | 59 | 742 | 93.5 | 0.78 | 2.0 | 1.5 | 7.0 | 42 | 810 | 4600 | |
YTM500-8 | 500 | 66 | 742 | 93.6 | 0.78 | 2.0 | 1.5 | 7.0 | 45 | 900 | 4800 | |
YTM500-8 | 560 | 74 | 742 | 93.7 | 0.78 | 2.0 | 1.5 | 7.0 | 50 | 1000 | 5100 | |
YTM560-8 | 560 | 72 | 742 | 93.8 | 0.80 | 2.0 | 1.5 | 7.0 | 77 | 1000 | 6200 | |
YTM560-8 | 630 | 81 | 742 | 93.9 | 0.80 | 2.0 | 1.5 | 7.0 | 86 | 1100 | 6500 | |
YTM560-8 | 710 | 91 | 742 | 94.0 | 0.80 | 2.0 | 1.5 | 7.0 | 96 | 1200 | 6800 | |
YTM560-8 | 800 | 102 | 742 | 94.1 | 0.80 | 2.0 | 1.5 | 7.0 | 102 | 1300 | 7100 | |
YTM630-8 | 900 | 112 | 742 | 94.2 | 0.82 | 2.0 | 1.5 | 7.0 | 120 | 1400 | 8000 | |
YTM630-8 | 1000 | 124 | 742 | 94.3 | 0.82 | 2.0 | 1.5 | 7.0 | 130 | 1600 | 8400 | |
YTM630-8 | 1120 | 139 | 742 | 94.4 | 0.82 | 2.0 | 1.5 | 7.0 | 150 | 1800 | 8800 | |
YTM630-8 | 1250 | 155 | 742 | 94.5 | 0.82 | 2.0 | 1.5 | 7.0 | 170 | 2000 | 9200 | |
YTM710-10 | 1250 | 163 | 594 | 94.5 | 0.78 | 2.0 | 1.5 | 7.0 | 302 | 3500 | 12500 | |
YTM710-10 | 1400 | 183 | 594 | 94.6 | 0.78 | 2.0 | 1.5 | 7.0 | 314 | 3900 | 13000 | |
YTM800-10 | 1600 | 208 | 594 | 94.7 | 0.78 | 2.0 | 1.5 | 7.0 | 470 | 4300 | 17000 | |
YTM800-10 | 1800 | 234 | 594 | 94.8 | 0.78 | 2.0 | 1.5 | 70 | 525 | 4800 | 18000 | |
型号 | (kW) |
(A) | (r/min) |
(%) | cosΦ |
Tm Tn | Tm Tn | Tm Tn | (kg) | ||
Jm (kg.m2) | J (kg.m2) | IP54 | |||||||||
YTM400-6 | 185 | 24 | 990 | 91.4 | 0.80 | 2.0 | 1.5 | 7.0 | 9 | 180 | 2500 |
YTM400-6 | 200 | 26 | 990 | 91.6 | 0.80 | 2.0 | 1.5 | 7.0 | 10 | 190 | 2550 |
YTM400-6 | 220 | 29 | 990 | 91.7 | 0.80 | 2.0 | 1.5 | 7.0 | 11 | 200 | 2600 |
YTM400-6 | 250 | 33 | 990 | 91.8 | 0.80 | 2.0 | 1.5 | 7.0 | 12 | 220 | 2700 |
YTM400-6 | 280 | 37 | 990 | 92.0 | 0.80 | 2.0 | 1.5 | 7.0 | 13 | 250 | 2800 |
YTM450-6 | 315 | 41 | 990 | 92.6 | 0.80 | 2.0 | 1.5 | 7.0 | 15 | 300 | 3600 |
YTM450-6 | 355 | 46 | 990 | 92.8 | 0.80 | 2.0 | 1.5 | 7.0 | 16 | 320 | 3700 |
YTM450-6 | 400 | 52 | 990 | 92.9 | 0.80 | 2.0 | 1.5 | 7.0 | 18 | 350 | 3800 |
YTM450-6 | 450 | 58 | 990 | 93.0 | 0.80 | 2.0 | 1.5 | 7.0 | 20 | 390 | 3900 |
YTM450-6 | 500 | 65 | 990 | 93.2 | 0.80 | 2.0 | 1.5 | 7.0 | 23 | 440 | 4070 |
YTM500-6 | 560 | 69 | 990 | 93.4 | 0.84 | 2.0 | 1.5 | 7.0 | 30 | 480 | 4550 |
YTM500-6 | 630 | 77 | 990 | 93.5 | 0.84 | 2.0 | 1.5 | 7.0 | 33 | 540 | 4700 |
YTM500-6 | 710 | 87 | 990 | 93.6 | 0.84 | 2.0 | 1.5 | 7.0 | 36 | 600 | 4850 |
YTM560-6 | 800 | 97 | 990 | 94.5 | 0.84 | 2.0 | 1.5 | 7.0 | 76 | 640 | 6400 |
YTM560-6 | 900 | 109 | 990 | 94.6 | 0.84 | 2.0 | 1.5 | 7.0 | 84 | 740 | 6800 |
YTM560-6 | 1000 | 121 | 990 | 94.7 | 0.84 | 2.0 | 1.5 | 7.0 | 90 | 810 | 7200 |
YTM630-6 | 1000 | 121 | 990 | 94.8 | 0.84 | 2.0 | 1.5 | 7.0 | 120 | 840 | 7800 |
YTM630-6 | 1120 | 135 | 990 | 94.9 | 0.84 | 2.0 | 1.5 | 7.0 | 131 | 890 | 8200 |
YTM630-6 | 1250 | 151 | 990 | 95.0 | 0.84 | 2.0 | 1.5 | 7.0 | 145 | 950 | 9000 |
YTM710-6 | 1400 | 169 | 990 | 95.1 | 0.84 | 2.0 | 1.8 | 7.0 | 152 | 1100 | 11500 |
YTM710-6 | 1600 | 193 | 990 | 95.2 | 0.84 | 2.0 | 1.8 | 7.0 | 166 | 1200 | 12000 |
YTM710-6 | 1800 | 216 | 990 | 95.3 | 0.84 | 2.0 | 1.8 | 7.0 | 188 | 1300 | 12500 |
YTM710-6 | 2000 | 240 | 990 | 95.4 | 0.84 | 2.0 | 1.8 | 7.0 | 205 | 1400 | 13000 |
