YRKS/YRKK Series Slip Ring Motor

Availability:

Quantity:


Inquire Add to Basket

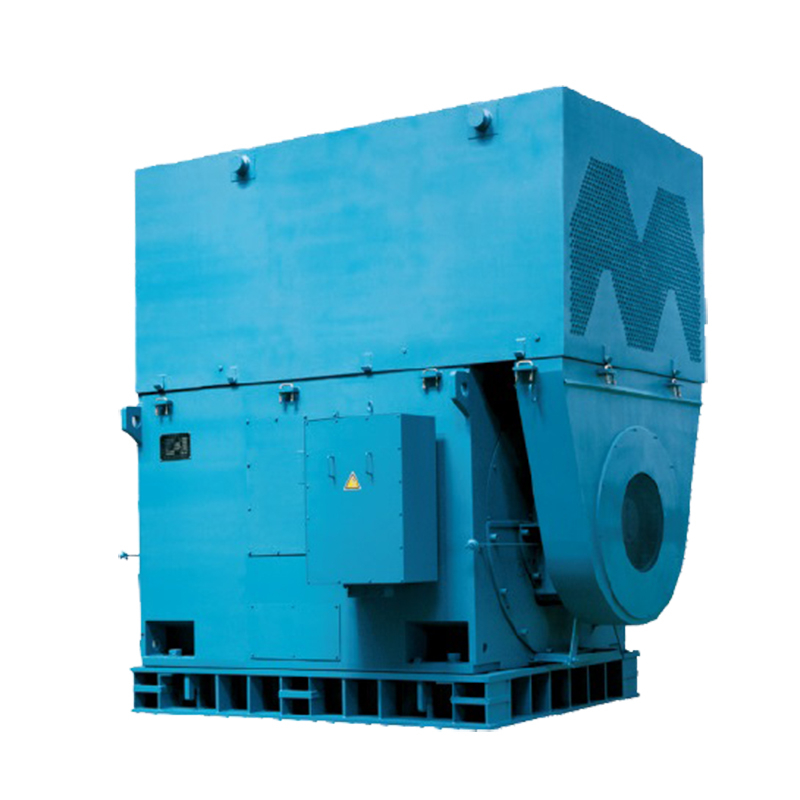

Product Description

YR,YRKS,YRKK 710-1000 6KV/10KV large boxed type Y series asynchronous slip ring motor are the latest products designed and developed according to relevant national and professional standards in combination with our experiences on design and manufacturing high voltage three phase asynchronous motors for more than 60 years through our introduction and digestion of a full set of design and manufacturing technologies of high voltage motors from USA Westinghouse Electric, Swiss ABB and Germany AEG.

This series of motors are made of new materials. They feature such advantages as high efficiency, low vibration, low noise, reliable performance, light weight, easy installation and maintenance.etc.

The power rating, installation dimensions and electrical performance of this series of motors comply with national standard GB T755 Rotating electrical machines rating and performance and GB T13957 technical requirements for the fundamental series of three phase large asynchronous motor, as well as international standard IEC.

Scope of Application

This series of motors can be applied as the driving power for various of general machinery like compressor, ventilator, water pump, crusher and other mechanical equipment, they are widely used in mining, petrochemical, metallurgical industries, power plant .etc as prime motors.

1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage: 3kv,3.3kv,6kv,6.6kv
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)

7,The working voltage change range is not more than ±5% of the rated voltage.

8, No. Of poles: 4,6,8

If there are special conditions and requirements, the order is also acceptable, but an additional technical requirements should be concluded,e.g non-standard power or the power not listed in sample, voltage, frequency, installation dimension, over-all dimension, high altitude, special ambient temperature, ambient environment and corrosive gas, large rotational inertia, strong over-load capacity.etc.

A Table for Design Data of YR, YRKS710 ~ 1000 series of Large-
Scale High - Voltage 3-Phase Asynchronous MotoiB (lOkV)

(Design Value)

Model	Rated Power (KW)	Stator Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cos 巾)	Maximum Torque Rated Torque T/Tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (Y/A)	Motor Rotational Inertia (kq - m2)	Weight (kg)
Model	Rated Power (KW)	Stator Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cos 巾)	Maximum Torque Rated Torque T/Tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (Y/A)	Motor Rotational Inertia (kq - m2)	YR	YRKS
710-4	2240	152	1488	95.36	0.89	2.78	2235	613	Y	185	12000	12400
	2500	173	1488	95.49	0.874	2.8	2380	642	Y	185	12500	12900
	2800	193	1488	95.63	0.876	2.86	2622	652	Y	202	13000	13400
	3150	215	1488	95.85	0.88	2.95	2918	656	Y	223	13500	13900
	3550	243	1488	95.95	0.877	3.09	3282	656	Y	244	14000	14400
710-6	1800	124	992	95.51	0.873	2.3	1623	683	Y	206	12100	12500
	2000	140	992	95.69	0.862	2.57	1868	654	Y	225	12500	12900
	2240	153	992	95.84	0.882	2.35	2033	676	Y	264	12900	13300
	2500	172	992	95.85	0.877	2.41	2215	691	Y	274	13300	13700
800-6	2800	198	992	95.64	0.8945	2.27	2229	773	Y	393	15900	16700
	3150	222	993	95.79	0.8963	2.3	2454	789	Y	434	16500	17400
	3550	250	993	95.89	0.8955	2.15	2654	825	Y	476	17200	18100
900-6	4000	277	993	95.96	0.8812	2.44	2821	868	Y	649	22600	23900
	4500	311	993	96.08	0.8885	2.36	3062	900	Y	729	23500	24300
	5000	346	993	96.13	0.8909	2.34	3343	921	Y	790	24500	25300
1000-6	5600	387	994	96.18	0.886	2.37	1963	1743	△	1051	27200	28000
	6300	434	993	96.29	0.8944	2.14	2066	1873	△	1173	28700	29500
	7100	489	994	96.41	0.8971	2.16	2298	1893	△	1296	30200	31000
	8000	551	994	96.56	0.8985	2.27	2586	1888	△	1418	31700	32500
710-8	1250	90.5	742	94.87	0.84	2.01	1172	668	Y	214	11000	11400
	1400	100	742	95.03	0.848	1.94	1294	679	Y	245	11500	11900
	1600	114	742	95.19	0.85	1.93	1438	697	Y	268	12000	12400
	1800	128	742	95.37	0.849	2.15	1725	646	Y	315	12500	12900
	2000	143	742	95.44	0.847	2.13	1848	671	Y	327	13000	13400
800-8	2240	164	743	95.11	0.8692	2.24	1437	966	△	464	16000	16700
	2500	181	744	95.01	0.8511	2.59	1701	904	△	507	16650	17350
	2800	202	744	95.15	0.8672	2.42	1820	948	△	560	17300	18000
	3150	225	744	95.27	0.8773	2.25	1956	995	△	635	18000	18800

A Table for Design Data of YR, YRKS710 ~ 1000 series of Large-
Scale High - Voltage 3-Phase Asynchronous MotoiB (lOkV)

(Design Value)

Model	Rated Power (KW)	Stator Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cos<\|>)	Maximum Torque Rated Torque tm/tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (Y/A)	Motor Rotational Inertia (kg • m2)	Weight (kg)
Model	Rated Power (KW)	Stator Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cos<\|>)	Maximum Torque Rated Torque tm/tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (Y/A)	Motor Rotational Inertia (kg • m2)	YR	YRKS
900-8	3550	253	744	95.35	0.8768	2.66	2168	1003	△	971	24500	25300
900-8	4000	285	744	95.4	0.8813	2.58	2350	1046	△	1058	25500	26300
1000-8	4500	320	744	95.71	0.8856	2.41	2116	1304	△	1265	24800	25500
	5000	355	744	95.82	0.8915	2.35	2294	1337	△	1397	26000	26900
	5600	393	744	95.94	0.8957	2.31	2506	1371	△	1544	27500	28300
	6300	443	744	96.04	0.8965	2.31	2757	1400	△	1677	29000	29700
710-10	1120	83	594	94.71	0.822	2.2	1350	516	Y	293	11300	11700
	1250	91	594	94.84	0.836	2.04	1434	544	Y	230	11800	12200
	1400	102	594	94.98	0.833	2.11	1612	540	Y	353	12300	12700
	1600	117	594	95.2	0.826	2.2	1842	538	Y	390	12800	13200
800-10	1800	136	594	94.83	0.8226	2.16	1256	893	△	466	16300	17000
	2000	151	594	94.98	0.826	2.16	1384	899	△	514	16950	17650
	2240	165	595	95.11	0.8318	2.18	1539	904	△	568	17600	18300
900-10	2500	185	594	95.04	0.8594	2.23	1593	975	△	838	24000	24300
	2800	208	594	95.13	0.8611	2.16	1745	999	△	920	25000	25300
	3150	235	595	95.37	0.8571	2.33	1992	977	△	1077	26000	26300
710-12	800	63.2	493	93.15	0.784	2.32	990	507	Y	298	10800	11200
	900	70.4	493	93.45	0.79	2.26	1082	522	Y	328	11200	11600
	1000	78	493	93.59	0.791	2.26	1192	526	Y	363	11600	12000
	1120	87	493	93.7	0.795	2.25	1325	530	Y	406	12000	12400
	1250	97	493	93.85	0.793	2.32	1492	524	Y	450	12400	12800
800-12	1400	110	494	94.27	0.81	2.02	1599	551	Y	529	16000	16700
	1600	126	494	94.28	0.8149	2.04	1831	549	Y	606	16650	17350
	1800	141	494	94.42	0.8283	1.91	1978	575	Y	674	17400	18100

A Table for Design Data of YRKK71。~ 1000 series of Large-
Scale High - Voltage 3-Phase Asynchronous MotoiB (6 kV)

(Design Value)

Model	Rated Power (KW)	Stator Curren (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor (cos <\|>)	Maximum Torque Rated Torque Tm/Tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (YM)	Motor Rotational Inertia (kg • m2)	Weight (kg)
710-4	2500	287	1491	95.55	0.8801	2.72	2296.7	667.3	Y	194	14100
	2800	317.6	1491	95.73	0.8888	2.66	2478.6	691.9	Y	211	14600
	3150	357.5	1491	95.89	0.887	2.8	2802.5	685.8	Y	233	15200
	3550	408.5	1492	95.96	0.8742	3.06	3218.2	670.7	Y	255	15900
710-6	1600	187.5	992	95.11	0.8632	2.35	140L2	7063	Y	190	12400
	1800	210.6	993	95,28	0.8631	2.42	1603.9	691.6	Y	217	12900
	2000	231.5	993	95.44	0.871	2.35	1732	712.J	Y	237	13400
	2240	261	993	95.56	0.8642	237	1872.3	736.3	Y	247	13800
	2500	286.8	993	95.73	0.8763	23	2047.3	75L4	Y	277	14300
800-6	2800	329	992	95.63	0.8711	2.32	2139	809	Y	362	17600
	3150	370	992	95.71	0.8731	2.37	2373	817	Y	394	18300
	3550	417	993	95.89	0.8685	2.49	2667	815	Y	433	19000
	4000	469	993	95.93	0.8836	2.61	3149	776	Y	522	19800
900-6	4500	526	994	96.02	0.8672	2.29	2840	973	Y	688	26100
	5000	583	994	96.12	0.8741	2.32	3137	977	Y	762	27000
	5600	653	994	96.2	0.8818	2.22	3384	1016	Y	835	28000
10046	6300	725	995	96.3	0.8792	2.05	3291	1181	Y	1128	30000
10046	7100	816	995	96.44	0.8885	1.96	3577	1226	Y	1256	31500
710-8	1250	150.1	742	95.42	0.84	2.01	1138	657	Y	215	12300
	1400	166.2	742	95.49	0.849	1.87	1179.9	6812	Y	245	12700
	1600	189.9	743	95.74	0,8468	2.09	1550.2	641.5	Y	280	13200
	1800	212.3	744	95.9	0.8506	2.07	1725.1	648.3	Y	315	13700
	2000	236.2	744	95.93	0.8494	2.15	1939.9	638J	Y	346	14200
800-8	2240	271	744	95.62	0.8522	2.17	2361	588	Y	436	18000
	2500	302	744	95.82	0.8507	2.27	2652	581	Y	482	18700
	2800	338	744	95.93	0.8542	2.25	2920	591	Y	530	19500
900-8	3150	372	744	95.87	0.8691	2.48	1728	1121	△	782	25500
	3550	419	745	95.96	0.8669	2.53	1931	1129	△	861	26400
	4000	472	745	96.11	0.88	2.47	2115	1162	△	951	27300
	4500	530	745	96.21	0.881	2.49	2351	1173	△	1051	28200

A Table for Design Data of YRKK710 ~ 1000 series of Lai^e-
Scale High - Voltage 3-Phase Asynchionous MotoiB (6 kV)

(Design Value)

Model	Rated Power (KW)	Stator Current (A)	Rated speed (r/min)	Efficiency (%)	Power Factor (cos<\|>)	Maximum Torque Rated Torque tm/tn	Rotor Voltage (V)	Rotor Current (A)	Rotor Connection (Y/A)	Motor Rotational Inertia (kg • m2)	Weight (kg)
1000-8	5000	583	745	96.04	0.881	2.25	2060	1495	△	1251	29000
1000-8	5600	652	745	96.16	0.8766	2.41	2351	1460	△	1388	30400
710-10	1120	137.7	594	94.86	0.8253	2.4	1409.9	491.3	Y	292	12900
	1250	152.9	594	94.42	0.833	2.41	1551.9	499.3	Y	319	13300
	1400	171	594	94.56	0.8332	2.43	1725.1	502.4	Y	352	13700
	1600	195.5	594	94.69	0.8317	2.45	1939.9	509.6	Y	389	14200
800-10	1800	228	594	95.03	0.8106	2.4	2243	496	Y	463	18500
	2000	253	594	95.14	0.8132	2.42	2460	502	Y	510	19000
	2240	283	595	95.28	0.8147	2.45	2764	499	Y	564	19800
900-10	2500	316	595	95.5	0.8435	2.27	1426	1084	△	815	25500
	2800	349	595	95.7	0.8394	2.3	1600	1081	△	896	26400
	3150	392	595	95.7	0.8497	2.19	1738	1122	△	988	28200
	3550	441	595	95.9	0.85	2.29	1949	1122	△	1090	29100
710-12	1000	131.8	495	94.21	0.7768	2.25	1193.4	523.3	Y	329	13100
	1120	146	495	94.39	0.7843	2.18	1304.2	537.2	Y	363	13600
	1250	161.2	495	94.53	0.7918	2.14	1435.9	544.1	Y	401	14000
800-12	1400	181	495	94.46	0.8008	2.43	1644	529	Y	498	17400
	1600	206	495	94.58	0.8159	2.28	1775	561	Y	545	18000
	1800	229	495	94.7	0.8294	2.18	1930	583	Y	600	18700
	2000	254	495	94.81	0.8237	2.44	2316	534	Y	691	19500
710-16	560	81.8	369	92.65	0.7206	2.3	1070.4	330.4	Y	283	13100
	630	92	369	92.67	0.7284	2.34	1200.3	330.6	Y	314	13500
	710	104.6	370	93.10	0.7218	2.42	1363.1	326.9	Y	350	14000
	800	116	370	93.29	0.7213	2.35	1501.7	334.3	Y	390	14500
