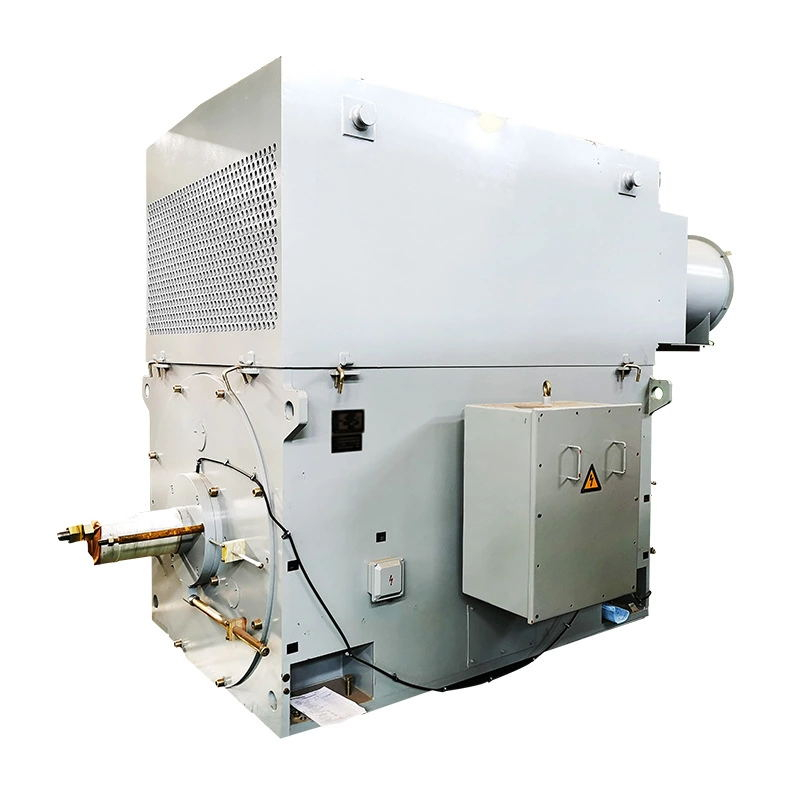

YFKK series (3kv,3.3kv,6kv,6.6kv)three-phase asynchronous motors for large thermal power equipment fans are a series of motors specially developed by our company for the characteristics of large moment of inertia and long starting time of various centrifugal fans.
Scope of Application
This series of motors are specially used as prime movers for various fans of large thermal power equipment, such as powder exhaust fans, induced draft fans, primary fans, and blowers.
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage: 3kv,3.3kv,6kv,6.6kv
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
7,The working voltage change range is not more than ±5% of the rated voltage.
8, No. Of poles: 4,6,8
If there are special conditions and requirements, the order is also acceptable, but an additional technical requirements should be concluded,e.g non-standard power or the power not listed in sample, voltage, frequency, installation dimension, over-all dimension, high altitude, special ambient temperature, ambient environment and corrosive gas, large rotational inertia, strong over-load capacity.etc.
型号 | (kW) |
(A) | (r/min) |
(%) | cosΦ |
Tm Tn | Tm Tn | Tm Tn | (kg) | |||
Jm (kg.m2) | J (kg.m2) | IP44 | ||||||||||
YFKK450-4 | 400 | 47.6 | 1489 | 93.6 | 0.86 | 1.8 | 0.7 | 6.5 | 8.9 | 210 | 3320 | |
450 | 52.9 | 1488 | 93.8 | 0.86 | 1.8 | 0.7 | 6.5 | 9.8 | 230 | 3410 | ||
500 | 59.5 | 1486 | 94.0 | 0.86 | 1.8 | 0.7 | 6.5 | 10.9 | 250 | 3520 | ||
560 | 66.5 | 1486 | 94.2 | 0.86 | 1.8 | 0.7 | 6.5 | 12.1 | 270 | 3630 | ||
630 | 74.7 | 1486 | 94.4 | 0.86 | 1.8 | 0.7 | 6.5 | 13.3 | 290 | 3790 | ||
710 | 84.0 | 1486 | 94.6 | 0.86 | 1.8 | 0.7 | 6.5 | 14.5 | 310 | 3910 | ||
YFKK500-4 | 800 | 93.3 | 1490 | 94.8 | 0.87 | 1.8 | 0.7 | 6.5 | 20.3 | 330 | 4400 | |
900 | 104.9 | 1489 | 94.9 | 0.87 | 1.8 | 0.7 | 6.5 | 21.9 23.9 | 370 | 4530 | ||
1000 | 116.4 | 1489 | 95.0 | 0.87 | 1.8 | 0.7 | 6.5 | 400 | 4770 | |||
1120 | 130.3 | 1488 | 95.1 | 0.87 | 1.8 | 0.7 | 6.5 | 25.9 | 430 | 4940 | ||
YFKK560-4 | 1250 | 144 | 1491 | 95.2 | 0.88 | 1.8 | 0.7 | 6.5 | 59 | 840 | 6700 | |
1400 | 161 | 1491 | 95.3 | 0.88 | 1.8 | 0.7 | 6.5 | 64 | 920 | 7000 | ||
1600 | 183 | 1491 | 95.4 | 0.88 | 1.8 | 0.7 | 6.5 | 71 | 980 | 7300 | ||
YFKK630-4 | 1800 | 206 | 1491 | 95.5 | 0.88 | 1.8 | 0.7 | 6.5 | 83 | 1080 | 9000 | |
2000 | 229 | 1491 | 95.6 | 0.88 | 1.8 | 0.7 | 6.5 | 89 | 1160 | 9400 | ||
2240 | 256 | 1491 | 95.7 | 0.88 | 1.8 | 0.7 | 6.5 | 98 | 1270 | 9800 | ||
YFKK450-6 | 400 | 49.4 | 990 | 93.8 | 0.83 | 1.8 | 0.7 | 6.0 | 16.6 | 600 | 3640 | |
450 | 55.4 | 990 | 94.1 | 0.83 | 1.8 | 0.7 | 6.0 | 18.3 | 650 | 3770 | ||
500 | 61.5 | 990 | 94.3 | 0.83 | 1.8 | 0.7 | 6.0 | 20.0 | 720 | 3880 | ||
YFKK500-6 | 560 | 68.0 | 992 | 94.4 | 0.84 | 1.8 | 0.7 | 6.0 | 27.2 | 850 | 4300 | |
630 | 76.4 | 992 | 94.5 | 0.84 | 1.8 | 0.7 | 6.0 | 29.2 | 950 | 4450 | ||
710 | 85.8 | 992 | 94.8 | 0.84 | 1.8 | 0.7 | 6.0 | 32.0 | 1100 | 4630 | ||
800 | 96.6 | 992 | 94.9 | 0.84 | 1.8 | 0.7 | 6.0 | 34.7 | 1200 | 4780 | ||
YFKK560-6 | 900 | 107 | 993 | 95.0 | 0.85 | 1.8 | 0.7 | 6.5 | 85 | 2270 | 6800 | |
1000 | 119 | 993 | 95.1 | 0.85 | 1.8 | 0.7 | 6.5 | 93 | 2470 | 7100 | ||
1120 | 133 | 993 | 95.2 | 0.85 | 1.8 | 0.7 | 6.5 | 102 | 2660 | 7400 | ||
YFKK630-6 | 1250 | 147 | 993 | 95.3 | 0.86 | 1.8 | 0.7 | 6.5 | 106 | 2990 | 8200 | |
1400 | 164 | 993 | 95.4 | 0.86 | 1.8 | 0.7 | 6.5 | 115 | 3230 | 8600 | ||
1600 | 187 | 993 | 95.5 | 0.86 | 1.8 | 0.7 | 6.5 | 127 | 3520 | 9000 | ||
YFKK500-8 | 400 | 51.3 | 743 | 93.7 | 0.8 | 1.8 | 0.8 | 5.5 | 34.4 | 1100 | 4310 | |
450 | 57.7 | 743 | 93.8 | 0.8 | 1.8 | 0.8 | 5.5 | 37.1 | 1300 | 4440 | ||
500 | 63.8 | 743 | 94.2 | 0.8 | 1.8 | 0.8 | 5.5 | 40.6 | 1550 | 4570 | ||
560 | 71.4 | 743 | 94.4 | 0.8 | 1.8 | 0.8 | 5.5 | 44.1 | 1700 | 4700 | ||
YFKK560-8 | 630 | 78 | 742 | 94.5 | 0.82 | 1.8 | 0.7 | 6.0 | 8 | 2650 | 6400 | |
710 | 88 | 742 | 94.6 | 0.82 | 1.8 | 0.7 | 6.0 | 89 | 2850 | 6700 | ||
800 | 99 | 742 | 94.7 | 0.82 | 1.8 | 0.7 | 6.0 | 99 | 3240 | 7000 | ||
YFKK630-8 | 900 | 110 | 744 | 94.8 | 0.83 | 1.8 | 0.7 | 6.0 | 113 | 3960 | 8000 | |
1000 | 122 | 744 | 94.9 | 0.83 | 1.8 | 0.7 | 6.0 | 126 | 4320 | 8400 | ||
1120 | 137 | 744 | 95.0 | 0.83 | 1.8 | 0.7 | 6.0 | 137 | 4680 | 8800 | ||
1250 | 152 | 744 | 95.1 | 0.83 | 1.8 | 0.7 | 6.0 | 151 | 4950 | 9200 | ||
