Product Description

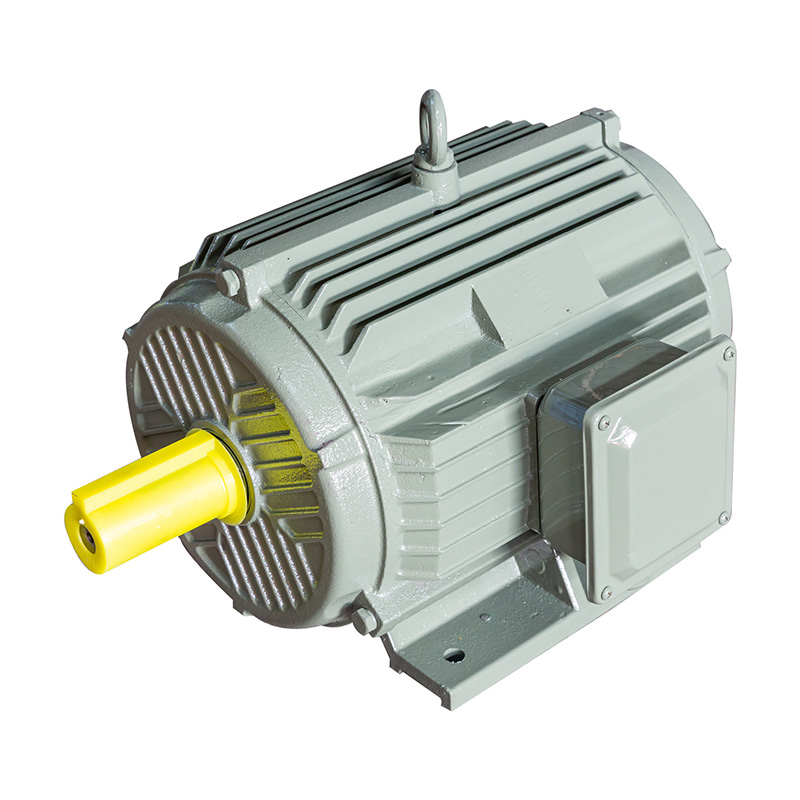

IE3 Series motors,high efficiency three phase asynchronous motors, produced according to the national standard GB18613-2012, The efficiency of the IE3 series motor complies with the national level 3 energy efficiency requirements an is consistent with IE3 of IEC60034-30.

These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration and running smoothly.

The efficiency of the YE2 series motor complies with the national level 2 energy efficiency requirements and is consistent with IE3 of IEC 60034-30.

1, Altitude: up to 1000m;

2, Ambient temperature: -15~40°C;

3, Operation duty: S1;

4, Rated Voltage 380V, Rated frequency 50HZ;

5, Encloseure protection: IP55(IEC34-5)

6, Cooling method: IC411(IEC34-6)

7, Frame size(center height)80-355mm

8, Rated power:0.75-315kw

9,No. Of poles: 2,4,6,8,10

Type	KW Output	A	r/min Speed	Eff% Efficiency	cos 4) Power Fact	ue		Locked Rotor current	Max mum torque Rated torque Tmax/TN	dB(A) Noise	kg Weight
Type	KW Output	A	r/min Speed	Eff% Efficiency	cos 4) Power Fact	N.m Rated torque	Rfitod torQuo Tst/TN	Rated Current Tst/TN	Max mum torque Rated torque Tmax/TN	dB(A) Noise	kg Weight
YE3-80M1-2	0.75	1.7	2830	80.7	0.82	2.5	2.3	7.0	2.3	62	17
YE3-80M2-2	1.1	2.4	2830	82.7	0.83	3.7	2.2	7.3	2.3	62	18
YE3-90S-2	1.5	3.2	2840	84.2	0.84	5.0	2.2	7.6	2.3	67	23
YE3-90L-2	2.2	4.6	2840	85.9	0.85	7.3	2.2	7.6	2.3	67	26
YE3-100L-2	3	6.0	2870	87.1	0.87	9.9	2.2	7.8	2.3	74	35
YE3-112M-2	4	7.8	2890	88.1	0.88	13.1	2.2	8.3	2.3	77	47
YE3-132S1-2	5.5	10.6	2900	89.2	0.88	17.9	2.0	8.3	2.3	79	67
YE3-132S2-2	7.5	14.4	2900	90.1	0.88	24.4	2.0	7.9	2.3	79	74
YE3-160M1-2	11	20.6	2930	91.2	0.89	35.5	2.0	8.1	2.3	81	123
YE3-160M2-2	15	27.9	2930	91.9	0.89	48.4	2.0	8.1	2.3	81	131
YE3-160L1-2	18.5	34.2	2930	92.4	0.89	59.7	2.0	8.2	2.3	81	154
YE3-180M-2	22	40.5	2940	92.7	0.89	70.7	2.0	8.2	2.3	83	187
YE3-200L1-2	30	54.9	2950	93.3	0.89	96.1	2.0	7.6	2.3	84	242
YE3-200L2-2	37	67.4	2950	93.7	0.89	118.5	2.0	7.6	2.3	84	263
YE3-225M-2	45	80.8	2970	94.0	0.90	143.2	2.0	7.7	2.3	86	335
YE3-250M-2	55	98.5	2970	94.3	0.90	175.0	2.0	7.7	2.3	89	415
YE3-280S-2	75	133.7	2970	94.7	0.90	238.6	1.8	7.1	2.3	91	525
YE3-280M-2	90	159.9	2970	95.0	0.90	286.3	1.8	7.1	2.3	91	578
YE3-315S-2	110	195.1	2980	95.2	0.90	348.8	1.8	7.1	2.3	92	919
YE3-315M-2	132	233.6	2980	95.4	0.90	418.5	1.8	7.1	2.3	92	998
YE3-315L1-2	160	279.4	2980	95.6	0.91	507.3	1.8	7.2	2.3	92	1124
YE3-315L2-2	200	348.6	2980	95.8	0.91	634.2	1.8	7.2	2.2	92	1250
YE3-355M-2	250	435.7	2980	95.8	0.91	792.7	1.6	7.2	2.2	100	1365
YE3-355L-2	315	549.0	2980	95.8	0.91	998.8	1.6	7.2	2.2	100	1502
YE3-80M2-4	0.75	1.8	1400	82.5	0.75	5.1	2.3	6.6	2.3	56	19
YE3-90S-4	1.1	2.6	1400	84.1	0.76	7.4	2.3	6.8	2.3	59	23
YE3-90L-4	1.5	3.5	1400	85.3	0.77	10.1	2.3	7.0	2.3	59	28
YE3-100L1-4	2.2	4.8	1430	86.7	0.81	14.5	2.3	7.6	2.3	64	36
YE3-100L2-4	3	6.3	1430	87.7	0.82	19.8	2.3	7.6	2.3	64	40
YE3-112M-4	4	8.4	1440	88.6	0.82	26.2	2.2	7.8	2.3	65	45
YE3-132S-4	5.5	11.2	1440	89.6	0.83	36.1	2.0	7.9	2.3	71	71
YE3-132M-4	7.5	15.0	1440	90.4	0.84	49.2	2.0	7.5	2.3	71	85
YE3-160M-4	11	21.5	1460	91.4	0.85	71.2	2.2	7.7	2.3	73	129
YE3-160L-4	15	28.8	1460	92.1	0.86	97.1	2.2	7.8	2.3	73	151
YE3-180M-4	18.5	35.3	1470	92.6	0.86	118.9	2.0	7.8	2.3	76	182
YE2-180L-4	22	41.8	1470	93.0	0.86	141.4	2.0	7.8	2.3	76	207

Type	KW Output	A	r/min Speed						Maximum rorqje Rated torque Tmax/TN	dB(A) Noise	kg Weight
Type	KW Output	A	r/min Speed	Eff% Efficiency	cos 4) Power Fact	N.m Rated torque	Rated torque Tst/TN	Rated Current Tst/TN	Maximum rorqje Rated torque Tmax/TN	dB(A) Noise	kg Weight
YE3-200L-4	30	56.6	1470	93.6	0.86	194.9	2.0	7.3	2.3	76	268
YE3-225S-4	37	69.6	1480	93.9	0.86	238.8	2.0	7.4	2.3	78	320
YE3-225M-4 \|	45	84.4	1480	94.2	0.86	290.4	2.0	7.4	2.3	78	350
YE3-250M-4	55	102.7	1480	94.6	0.86	354.9	2.2	7.4	2.3	79	441
YE3-280S-4 ]	75	136.3	1480	95.0	0.88	484.0	2.0	6.9	2.3	80	546
YE3-280M-4	90	163.2	1480	95.2	0.88	580.7	2.0	6.9	2.3	80	641
YE3-315S-4 ]	noj	196.8	1485	95.4	0.89	707.4	2.0	7.0	2.2	88	919
YE3-315M-4	132	235.7	1485	95.6	0.89	848.9	2.0	7.0	2.2	88	1076
YE3-315L1-4 I	160 J	285.1	1485	95.8	0.89	1029.0	2.0	7.1	2.2	88	1192
YE3-315L2-4	200	351.7	1485	96.0	0.90	1286.2	2.0	7.1	2.2	88	1318
YE3-355M-4 I	250J	439.6	1486	96.0	0.90	1606.7	2.0	7.1	2.2	95	1575
YE3-355L-4	315	553.9	1486	96.0	0.90	2024.4	2.0	7.1	2.2	95	1733
YE3-90S-6	0.75	2.0	910	78.9	0.71	7.9	2.0	6.0	2.1	57	24
YE3-90L-6	1.1	2.8	910	81.0	0.73	11.5	2.0	6.0	2.1	57	26
YE3-100L-6 I	1.5	3.8	940	82.5	0.73	15.2	2.0	6.5	2.1	61	35
YE3-112M-6	2.2	5.4	940	84.3	0.74	22.4	2.0	6.6	2.1	65	47
YE3-132S-6	3	7.2	960	85.6	0.74	29.8	2.0	6.8	2.1	69	77
YE3-132M1-6	4	9.5	960	86.8	0.74	39.8	2.0	6.8	2.1	69	82
YE3-132M2-6	5.5	12.7	960	88.0	0.75	54.7	2.0	7.0	2.1	69	88
YE3-160M-6	7.5	16.2	960	89.1	0.79	74.6	2.0	7.0	2.1	73	125
YE3-160L-6 ]	11	23.1	960	90.3	0.80	109.4	2.0	7.2	2.1	73	147
YE3-180L-6	15	30.9	970	91.2	0.81	147.7	2.0	7.3	2.1	73	195
YE3-200L1-61	18.5	37.8	970	91.7	0.81	182.1	2.0	7.3	2.1	73	247
YE3-200L2-6	22	44.8	970	92.2	0.81	216.6	2.0	7.4	2.1	73	273
YE3-225M-6 I	30	59.1	980	92.9	0.83	292.3	2.0	6.9	2.1	74	317
YE3-250M-6	37	71.7	980	93.3	0.84	360.6	2.0	7.1	2.1	76	415
YE3-280S-6	45	85.8	980	93.7	0.85	438.5	2.0	7.3	2.0	78	525
YE3-280M-6	55	103.3	980	94.1	0.86	536.0	2.0	7.3	2.0	78	583
YE3-315S-6	75	143.4	985	94.6	0.84	727.2	2.0	6.6	2.0	83	929
YE3-315M-6	90	169.5	985	94.9	0.85	872.6	2.0	6.7	2.0	83	1013
YE3-315L1-6	110	206.8	985	95.1	0.85	1066.5	2.0	6.7	2.0	83	1155
YE3-315L2-6	132	244.4	985	95.4	0.86	1279.8	2.0	6.8	2.0	83	1223
YE3-355M1-6	160	295.7	990	95.6	0.86	1543.4	1.8	6.8	2.0	85	1565
YE3-355M2-6	200	364.6	990	95.8	0.87	1929.3	1.8	6.8	2.0	85	1743
YE3-355L1 -6	250	455.7	990	95.8	0.87	2411.6	1.8	6.8	2.0	85	1943
